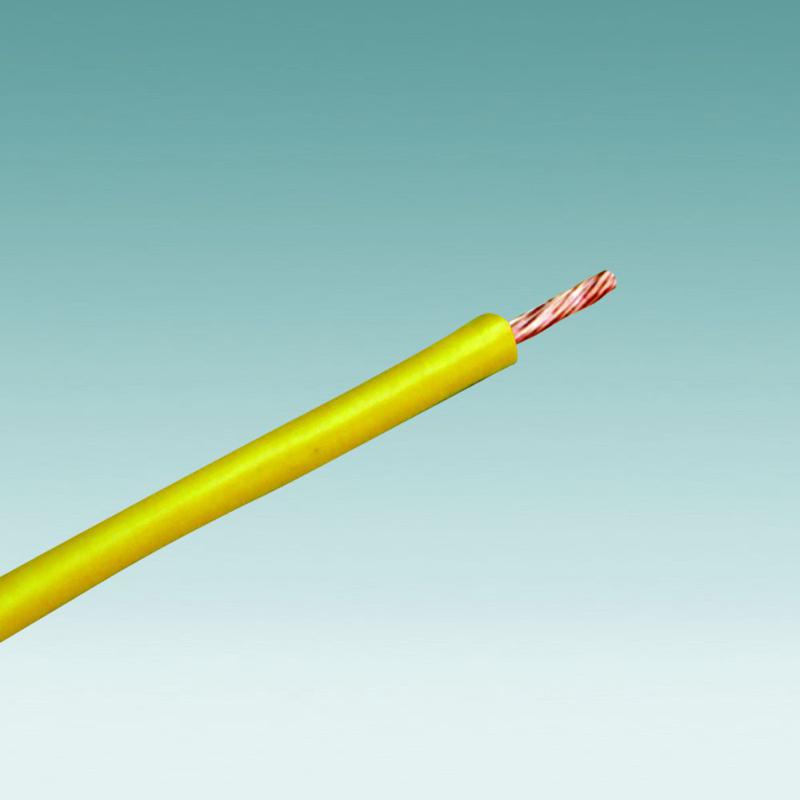

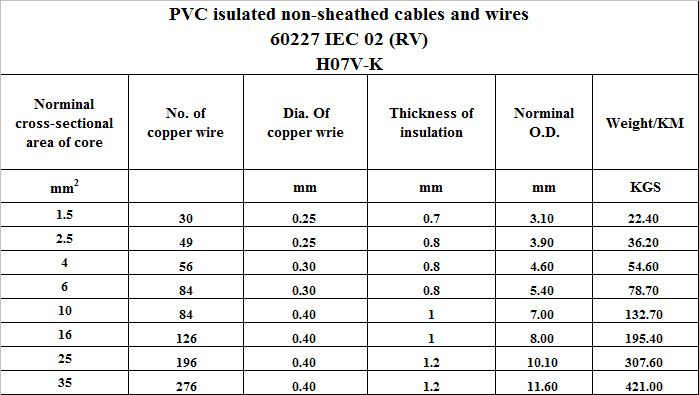

IEC 02 (RV) H07V-K
Application and Description
These insulated wires are determined for installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributors boards, in tubes, under and surface mounting of plasters.
Standard and Approval
GB/T 5023.3 -2008 / IEC 60227-3 : 2003 CCC / ROHS compliant
Technical Characteristics
| Working voltage: | 450/750v | Test voltage: | 2000 volts | Flexing bending radius: | 12.5 x Ø | Fixed bending radius: | 12.5 x Ø | Flexing Temperature: | -5º C to +70º C | Fixed Temperature: | -30º C to +80º C | Flame retardant: | IEC 60332.1 |
|---|

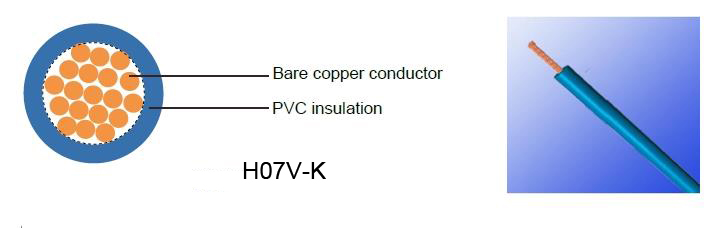

- Fine bare copper strands
- Strands to VDE-0295 Class-5, IEC 60228 Class-5
- Special PVC TI1 core insulation
- Cores to VDE-0293 colors on chart
