H03VV-F/H03VVH2-F

Application and Description

These cable types are especially suited for use on small appliances with low mechanical stress and for connection for light household appliances, e.g. kitchen utensils, desk lamps, floor lamps, vacuum cleaners, office machines, radios, etc. As far as these cables are admitted to the relevant specifications of the equipment, They are not permitted for use with cooking or heating apparatus. Cables with cross section 0.75 mm² are not suitable for outdoor use or use of industrial or farmer machineries.

Standard and Approval

AS/NZS60227.5:2003 including amendment 1(H03VV-F /H03VVH2-F). AS/NZS3191:2008(H03V2V2-F / H03V2V2H2-F). Approved by Queensland Government(ESO) ROHS compliant

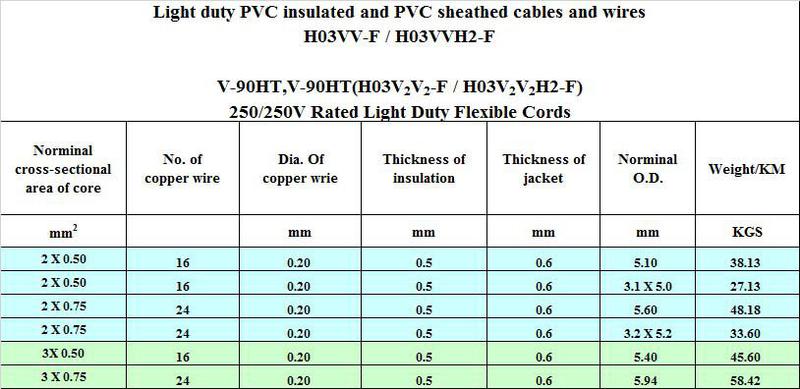

Technical Characteristics

Working voltage: 300/300 volts(H03VV-F /H03VVH2-F)
Working voltage: 250/250 volts(H03V2V2-F / H03V2V2H2-F)
Test voltage: 2000 volts
Flexing bending radius: 7.5 x Ø
Static bending radius: 4 x Ø
Flexing temperature: -5º C to +70º C
Static temperature: -40º C to +70º C

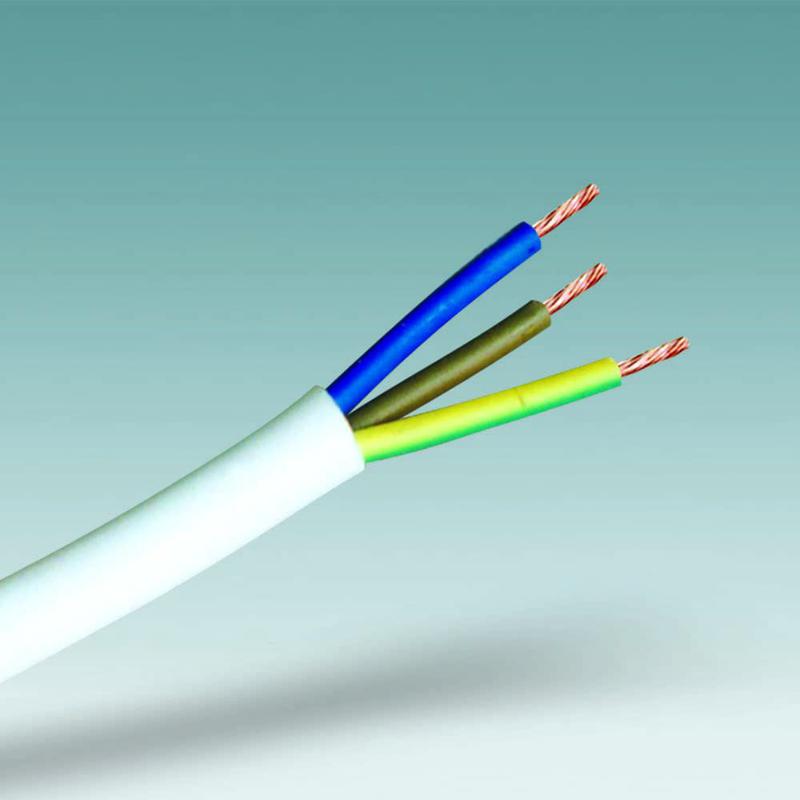

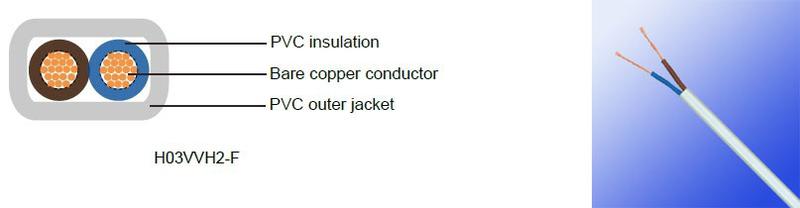

- Bare copper fine wire conductor
- PVC core insulation
- Green-yellow grounding (3 conductors and above)
- PVC outer jacket
