Application and Description

These cables are used as a connection between the welding generator, the hand-electrode and the work piece. For use in the automobile industry, ship building, transport and conveyor systems, tool making machinery, welding robots etc. These cables retain their high flexibility even under influence of ozone, light, oxygen, protective gases, oil and petrol. Robust cable structure of these cables makes them esistant to low and high temperature, fire, ozone and radiation, oils, acids, fats and petrol. These cables are also ideal for outside installation in dry, moist and wet areas.

Standard and Approval

UNE 21027, HD22.6 S2, VDE-0282 Part-6, IEC 60332.3, IEC 60754.1, ROHS compliant

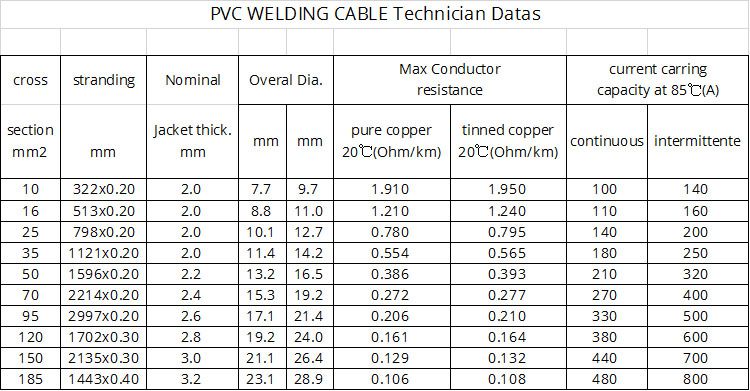

Technical Characteristics

Working voltage: 100/100 volts
Test voltage: 1000 volts
Flexing bending radius: 12.0 x Ø
Fixed bending radius: 7.5 x Ø
Flexing Temperature: -25º C to +80º C
Fixed Temperature: -40º C to +80º C
Flame retardant: IEC 60332.1

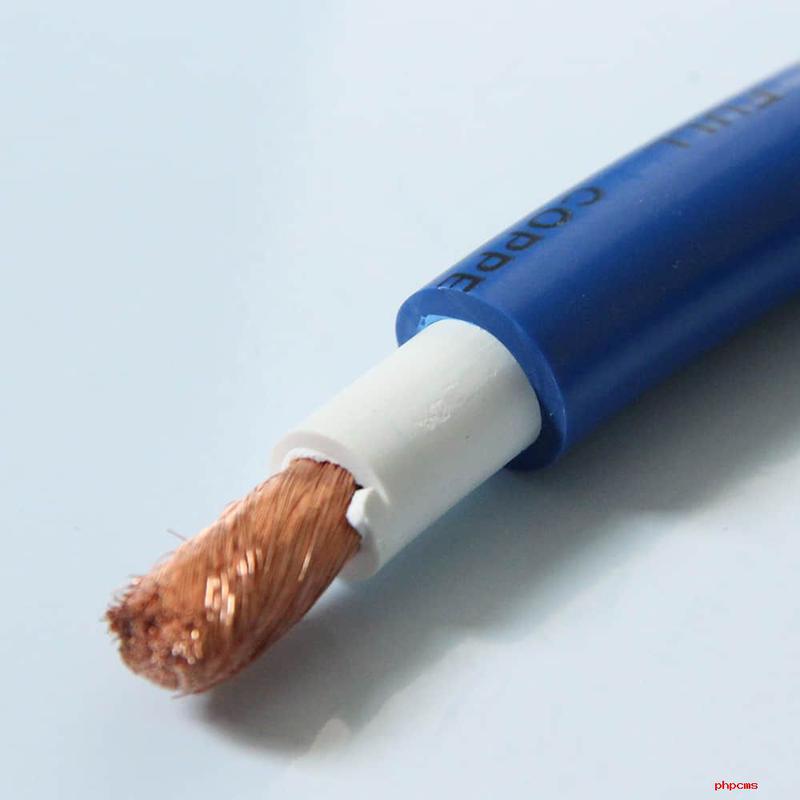

- Extra fine bare copper strands
- Synthetic or paper separator over core
