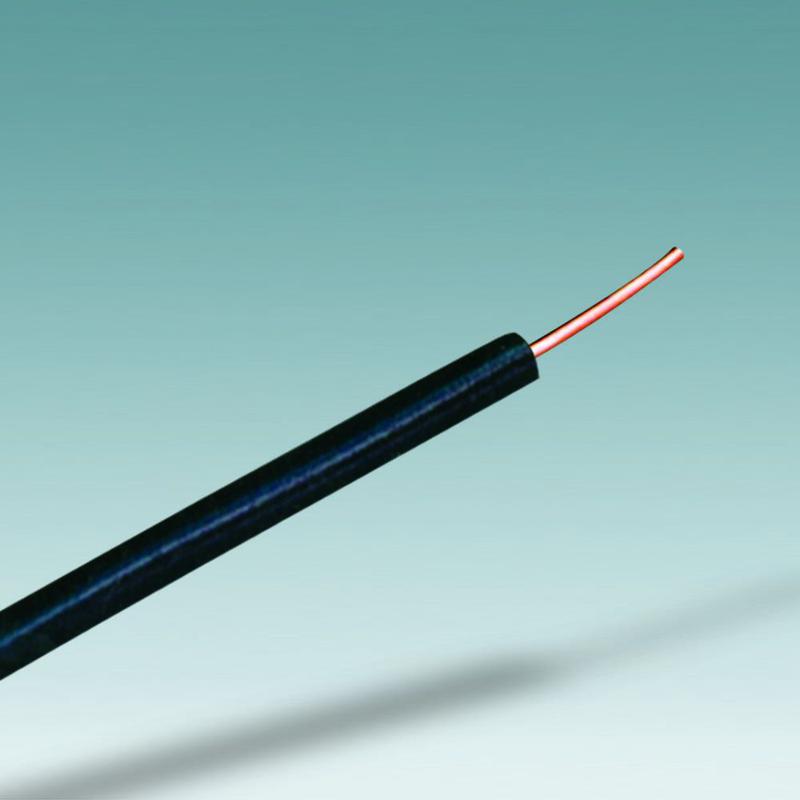

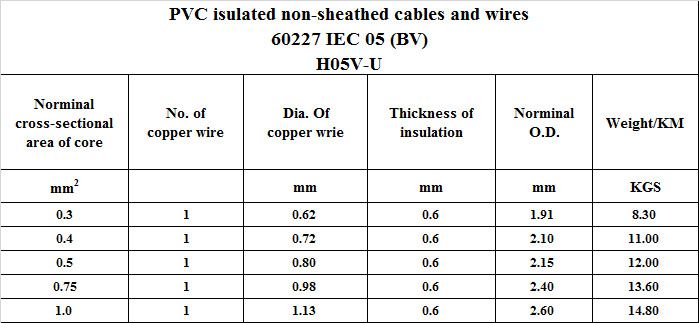

H05V-U 60227 IEC 05 (BV)

Application and Description

These insulated wires are determined for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes, under and surface mounting of plasters.

Standard and Approval

GB/T 5023.3 -2008 / IEC 60227-3 : 2003 CCC / ROHS compliant

Technical Characteristics

Working voltage: 300/500v
Test voltage: 2000V
Flexing bending radius: 15 x Ø
Static bending radius: 15 x Ø
Flexing temperature: -5º C to +70º C
Static temperature: -30º C to +90º C
Short circuit temperature: +160º C
Flame retardant: IEC 60332.1

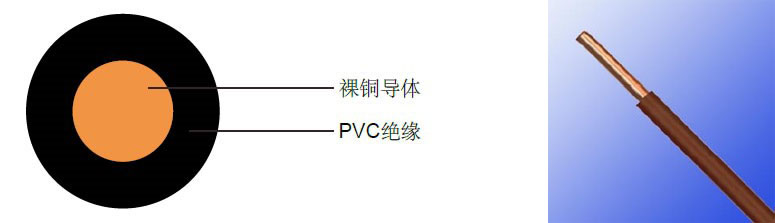

- Solid bare copper single wire
- Solid to DIN VDE 0295 cl-1 and IEC 60228 cl-1
- Special PVC TI1 core insulation
