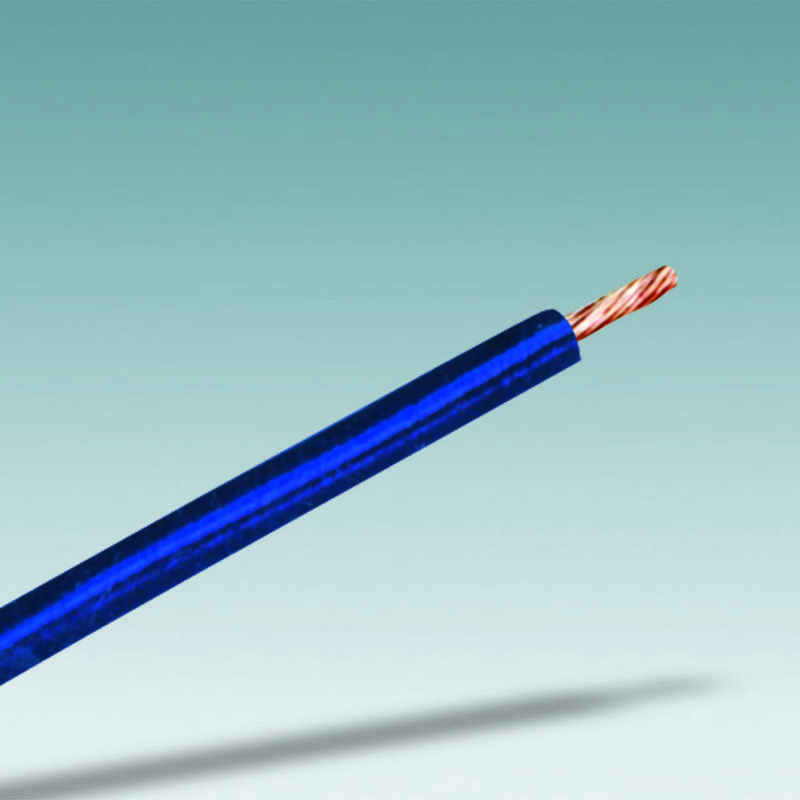

H05V-K 60227 IEC 06 (RV)

Application and Description

These insulated wires are determined for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes, under and surface mounting of plasters.

Standard and Approval

GB/T 5023.3 -2008 / IEC 60227-3 : 2003 CCC / ROHS compliant

Technical Characteristics

Working voltage: 300/500v
Test voltage: 2000 volts
Flexing bending radius: 12.5 x Ø
Fixed bending radius: 12.5 x Ø
Flexing Temperature: -5º C to +70º C
Fixed Temperature: -30º C to +80º C
Flame retardant: IEC 60332.1

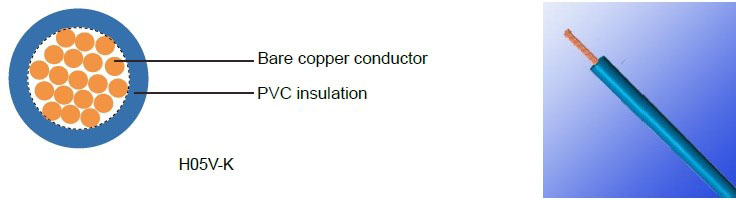

- Fine bare copper strands
- Strands to VDE-0295 Class-5, IEC 60228 Class-5
- Special PVC TI1 core insulation
- Cores to VDE-0293 colors on chart
