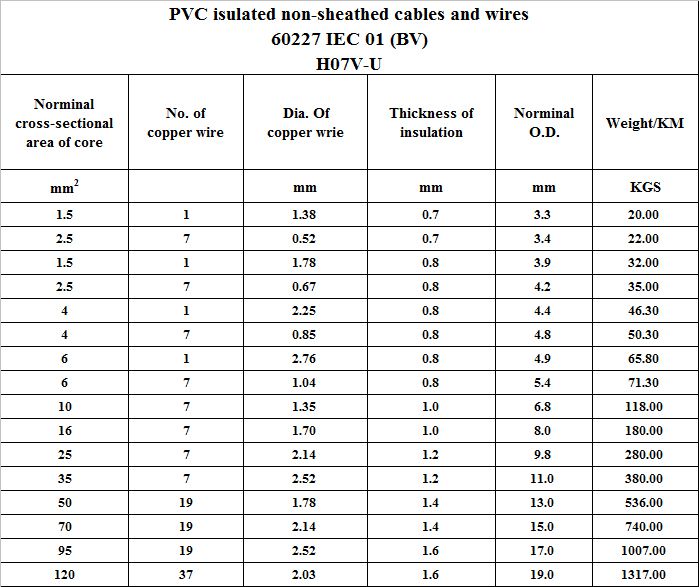

H07V-U 60227 IEC 01 (BV)
Application and Description
These insulated wires are suitable for laying tubes, under and surface mounting of plasters and also in closed installation conduits. These are not allowed to install for direct laying in cable trays, channels or tanks. These types are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against ground
Standard and Approval
GB/T 5023.3 -2008 / IEC 60227-3 : 2003 CCC / ROHS compliant
Technical Characteristics
| Working voltage: | 450/750v | Test voltage: | 2500V | Flexing bending radius: | 15 x Ø | Static bending radius: | 15 x Ø | Flexing temperature: | -5º C to +70º C | Static temperature: | -30º C to +90º C | Short circuit temperature: | +160º C | Flame retardant: | IEC 60332.1 |
|---|

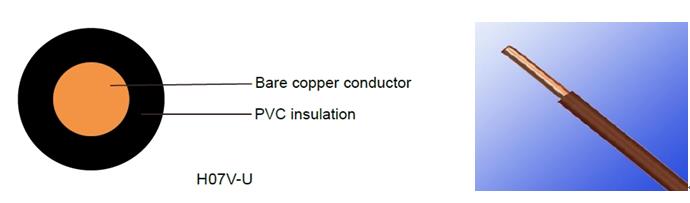

- Solid bare copper single wire
- Solid to DIN VDE 0295 cl-1 and IEC 60228 cl-1
- Special PVC TI1 core insulation
